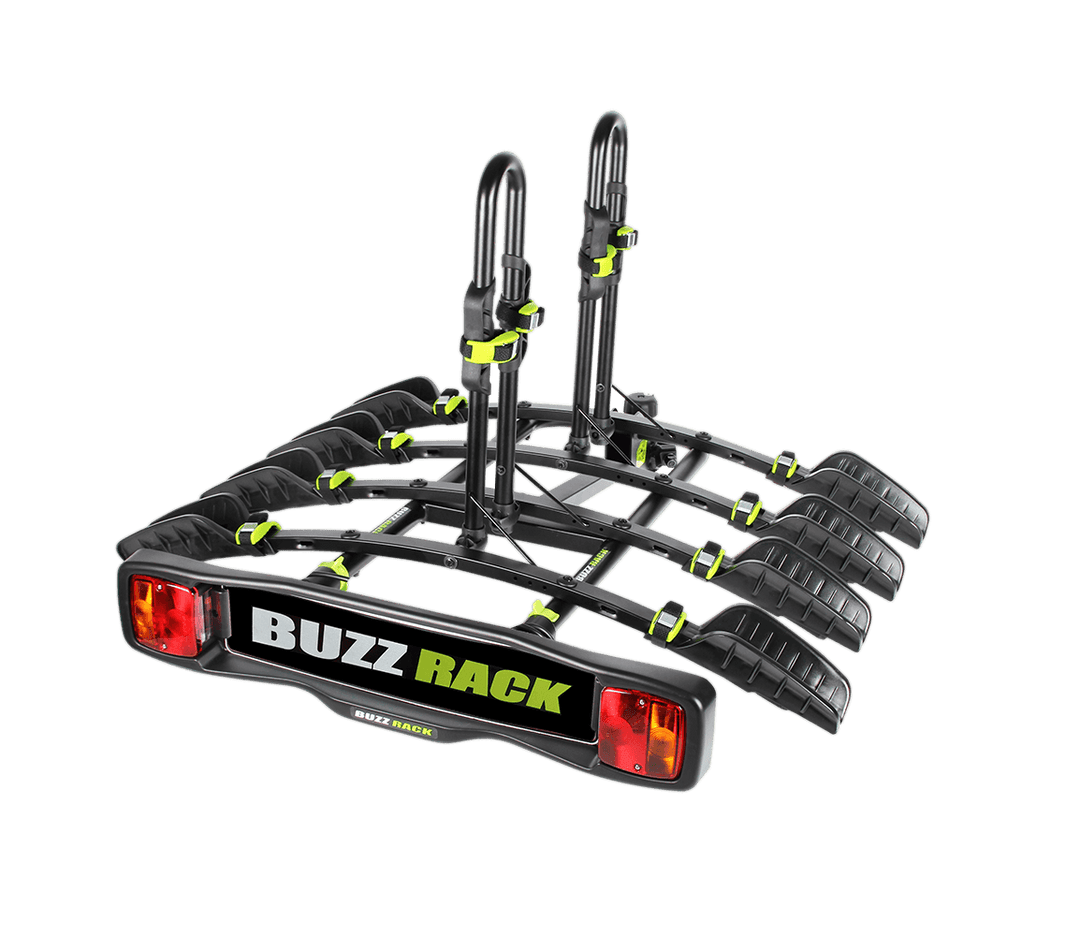

BuzzRack Buzzybee 4 Bike Carrier
TOW BALL ATTACHMENT
The patented conic system fits onto all ISO 50mm diameter tow balls. Easy to use and secure.
The system can be locked using the locking knob.
The special Buzz wrench is included for the installation of the product on the tow ball.
WHEEL SUPPORTS
The wheel holders will accommodate all wheelbases, even very small children’s bikes.
The straps allow a secure attachment of the wheels and the pads protect the rims.
The straps are long enough to hold the biggest rims.
FRAME ATTACHMENT
The attachment pads offer the maximal protection of the bike frame.
The straps and protective pads ensure a firm and secure fit of the bike on the platform.
An additional safety strap is supplied to secure all the bikes together.
LIGHTS
BuzzyBee is supplied with standard 3 function lights and a 7 pin plug.
LIGHTS SUPPORT
The light plate can be easily removed to allow easier storage.
SIZE
Size does matter. You will not find a 4 bike platform as light and compact as the BuzzyBee 4.
TECHNICAL SPECIFICATIONS
Max number of bikes: 4
Fits bolt-on tow ball: yes
Fits swan neck / detachable tow ball: yes
Dimensions (width x depth): 114cm x 93cm
(measured from the centre of the tow ball mount to the outside edge of the number plate holder).
Dimensions (folded): 114 x 96 x 19cm
Weight: 14.7kg
Max load capacity: 60kg
Max weight per bike: 15kg
Tilting: no
Integrated lighting board: yes with quick release system
Lighting board plug type: 7 pin
Bike carrier to tow ball lock: yes
Bike carrier to bike lock: no
The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
Requires 65mm clearance from center of tow ball to rear of vehicle.
If you have a 7 pin socket the reversing light and fog light will not work.
The 7 pin socket isn’t wired for these functions.
